Toggle Switch SPDT On-Momentary

Control the electrical accessories of your model railway layout with this toggle switch

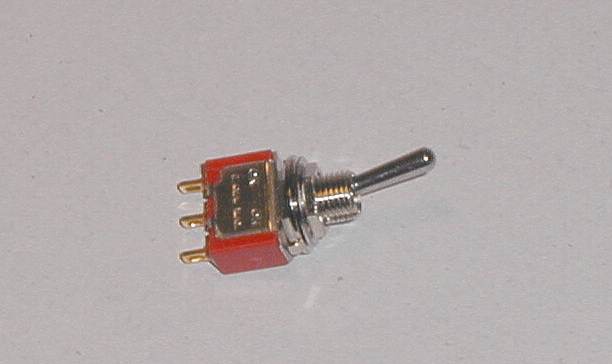

Toggle Switch SPDT On-Mom



This toggle switch is On in one direction and spring loaded to give a Momentary contact in the other direction. Ideal for electrical items that need power only momentarily, e.g. flashing lights and solenoids.

  • Contact Configuration: SPDT On-Mom
  • Max Contact Current AC: 2A
  • Max Contact Current DC: 5A
  • Max Contact Voltage AC: 250V
  • Max Contact Voltage DC: 125V
  • Terminal Type: Solder
  • Tab Blade Thickness: 0.76mm
  • Bush Thread Length: 8.88mm
  • Contact Current @ Contact Voltage AC Max: 2A
  • Contact Current @ Contact Voltage DC Max: 5A
  • Contact Material: Gold
  • Contact Resistance: 10mohm
  • External Depth: 10.54mm
  • External Length / Height: 12.7mm
  • External Width: 6.86mm
  • Height: 12.7mm
  • Lever Length: 10.4mm
  • Max Switching Power: 0.4VA
  • No. of Electrical Operations: 40000
    No. of Poles: 1
  • Panel Cut-out Diameter: 6.35mm
  • Thread Size: 1/4" x 40 NS


£1.40



If you are not sure how to use this switch in your model railway layout then please contact us we can help you.
