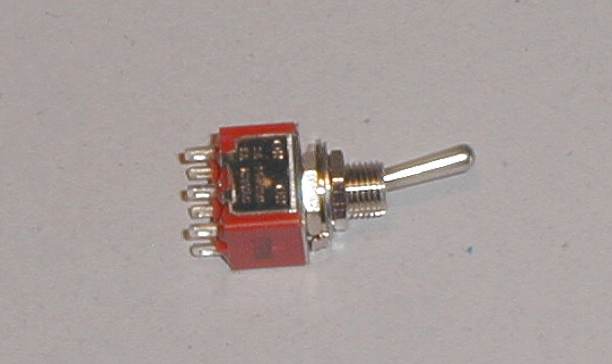

Toggle Switch DPDT On-On

Control the electrical accessories of your model railway layout with this toggle switch

Toggle Switch DPDT On-On


This toggle switch is On in one direction and On in the other direction. Ideal for electrical items that need power for long periods of time, e.g. lights for buildings and street scenes. This is a Double Pole switch that can switch two isolated circuits at the same time.

  • Contact Configuration: DPDT On-On
  • Max Contact Current AC: 2A
  • Max Contact Current DC: 5A
  • Max Contact Voltage AC: 250V
  • Max Contact Voltage DC: 125V
  • Terminal Type: Solder
  • Tab Blade Thickness: 0.76mm
  • Bush Thread Length: 8.88mm
  • Contact Current @ Contact Voltage AC Max: 2A
  • Contact Current @ Contact Voltage DC Max: 5A
  • Contact Material: Gold
  • Contact Resistance: 10mohm
  • External Depth: 10.54mm
  • External Length / Height: 12.7mm
  • External Width: 11.43cm
  • Height: 12.7mm
  • Lever Length: 10.4mm
  • Max Switching Power: 0.4VA
  • No. of Electrical Operations: 40000
  • No. of Poles: 2
  • Panel Cut-out Diameter: 6.35mm
  • Thread Size: 1/4" x 40 NS




If you are not sure how to use this switch in your model railway layout then please contact us we can help you.
